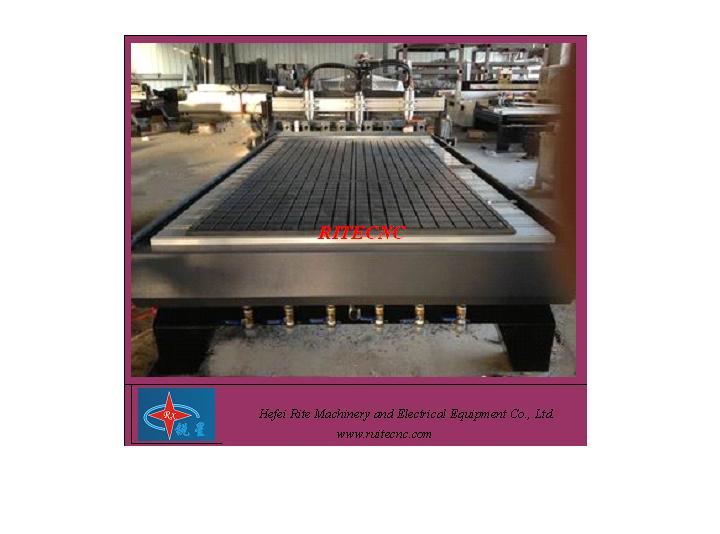

China new popular 1325 VACUUM TABLE CNC ROUTER for wood,glass,plastic,stone use

China new popular 1325 VACUUM TABLE CNC ROUTER for wood,glass,plastic,stone use

1. Particular style, competent for elaborate engraving and cutting.
2. The lathe bed is wholly moulded to ensure high stability. Three axes all adopt linear square rail.
3. High accurate gears ensure operating speed as high as 30m/min.
4. Memory to ensure the processing point when the blade is broken or postpone situation. Specific saving mode of different points.
5. Drive on all axis is precision rack. X axis uses the popular dustproof structure, which guarantee effectively the machine long-term performance characteristic.



Model TMC-1325
Machine body steel structure
Working size 1300×2500mm
Table size 1600×2800×1500mm
Z-axis working area 200mm ball screw drive
X/Y movement rack and pion,gear drive
Resolution 0.025mm
Guide linear square rail
Working voltage AC380V/50-60Hz, 3-phase
Max. Feeding material height 200mm/400mm
Max. Speed 30m/min
Max.working speed 25m/min
Mechanical precision 0.01mm
Software Artcam,Artcut,Type 3 software
Spindle 4.5KW variable speed, water-cooled motor
Spindle speed 0-24, 000rpm
Blade diameter 1-12.7mm
Command HPGL, G code, u00, mmg, plt
N.W.    960KG
G.W. 1200KG






a.more spindle motors
b.dust collecting system
c.oil lubrication system
d.vacuum system
e.can produce any size and color for customers' special requirements.

Guarantee and After-sale service:
1 year guarantee
24hour’s technical support by e-mail or calling

If you have any needs, please contact us.

Hefei Rite Machinery and Electrical Equipment Co., Ltd.
TEL: 0551-5737189
FAX: 0551-5305790
contact person: Elsa shan

SKYPE ID: elsacnc
