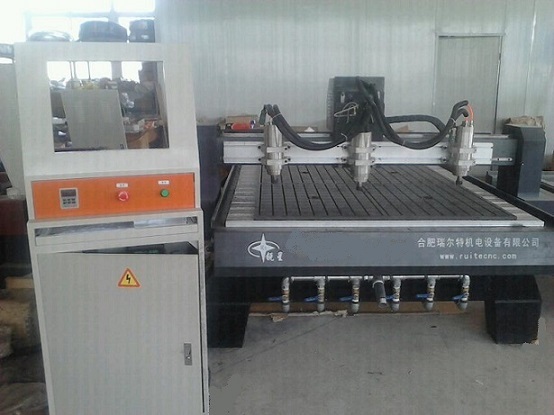

T slot and vacuum table cnc wood machine

T slot and vacuum table cnc wood machine





Machine features:
1. Particular style, competent for elaborate engraving and cutting.
2. The lathe bed is wholly moulded to ensure high stability. Three axes all adopt linear square rail.
3. High accurate gears ensure operating speed as high as 30m/min.
4. Memory to ensure the processing point when the blade is broken or postpone situation. Specific saving mode of different points.
5. Drive on all axis is precision rack. X axis uses the popular dustproof structure, which guarantee effectively the machine long-term performance characteristic.





Parameters:

Model TMC-1325
Machine body steel structure
Working size 1300×2500mm
Table size 1600×2800×1500mm
Z-axis working area 200mm ball screw drive
X/Y movement rack and pion,gear drive
Resolution 0.025mm
Guide linear square rail
Working voltage AC380V/50-60Hz, 3-phase
Max. Feeding material height 200mm/400mm
Max. Speed 30m/min
Max.working speed 25m/min
Mechanical precision 0.01mm
Software Artcam,Artcut,Type 3 software
Spindle 4.5KW variable speed, water-cooled motor
Spindle speed 0-24, 000rpm
Blade diameter 1-12.7mm
Command HPGL, G code, u00, mmg, plt
N.W.    960KG
G.W. 1200KG







optional:

a.  Stepper motor / Servo motor.

b.  dust collecting system

c.  vacuum system

d.  Spindle : water cooling spindle (3KW , 4.5KW) / Italy HSD air cooling spindle.
e.  Dsp/NC Studio controlling system

f. can produce any size and color for customers' special  requirements.







Guarantee and After-sale service:


a.One year warranty. During the one year, if spare part broken ,we freely change a new one for you.



b.24hour’s technical support by e-mail or calling.


c.Use English manual for machine using and maintaining.





Samples:







Parts:








Our factory:


vacuum table.JPG





If you have any needs, please contact us.
