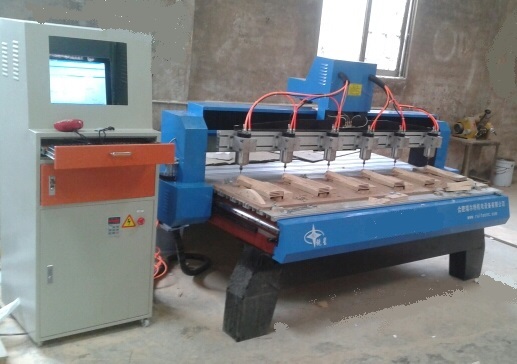

multi spindle cnc machine AC servo motor CNC ROUTER

multi spindle cnc machine AC servo motor CNC ROUTER









1.Features:

Pipe steel structure bed, strong deformation, high stability.

Precision rack drive, quick speed, high machining efficiency, smooth operation.

Standard rectangle linear guide rail, Y to double row four row block, good bearing, stable operation, high precision, long life.

Famous constant power water-cooled frequency conversion motor and high performance frequency converterperformance is good, torque, high efficiency.

Software compatibility is good. Combined Type3 / Artcam/CAXA/UG/Pro - E/Mastercam/wen tai, etc.









2.Applicable Fields:

Widely used in big area wood engraving , wood furniture engraving, solid wood engraving, high density board of door and

window engraving etc. Widely used in Antique furniture with relief carving, wood carving, furniture processing, instrument

making, 3D light box making, Aluminum composite panel, funding mould decorative doors and windows processing etc.









3.Technical Parameters:







MOLD

TMC-1813A

Working Area

1800*1300*160mm

Table Size

1970*1680

Motion Speed

  6-15m/min

Operating System

Weihong Nc.studio

Spindle Motor

Six spindles each 1.5kw

Spindle Rotation

 6000-24000 rpm/min

Working Voltage

AC220V/50HZ

  Engraving Tools

3.175/4/6mm

Dictate Format

G-code/HPGL

X,Y axis

Hybrid Servo motor(better than stepper)

Z axis

High precision ball screw

Linear guide

PMI from Taiwan

software

TYPE3









4.optional:



a.  Stepper motor / Servo motor.



b.  dust collecting system



c.  vacuum system



d.  Spindle : water cooling spindle (3KW , 4.5KW) / Italy HSD air  cooling spindle.



e.  Dsp/NC Studio controlling system



f. can produce any size and color for customers' special    requirements.







5.Guarantee and After-sale service:



a.One year warranty. During the one year, if spare part broken , we freely change a new one for you.



b.24hour’s technical support by e-mail or calling.





c.Use English manual for machine using and maintaining.
























6.Samples:








.jpg







.jpg









7.Parts:




 PMI linear guide.JPG







8.Our factory:






If you have any needs, please feel free to contact me.
