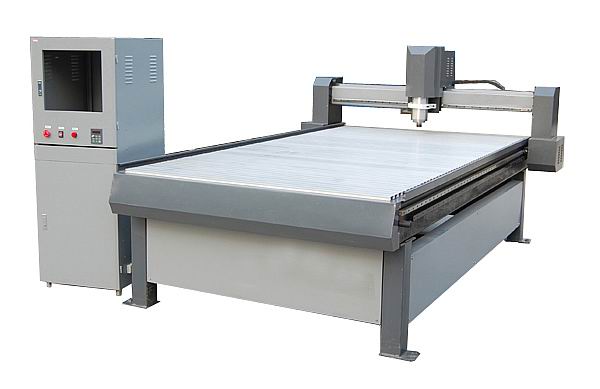

pinion and rack CNC ROUTER

pinion and rack CNC ROUTER









1.Features:



a.Thick square tube bed with Integral steel structure, solid deformation, science of whole welding, high stability.

b.In Z to use PMI original screw or a high precision gear transmission. PMI original guide, effectively guarantee   the machining acc   urac.cy of machine.



c.The Z assembly key parts using iron tempering processing, ensure no deformation.



d.The cross beam supporting seat adopts a box type structure, strong bearing capacity.



e.Effects of X and Y to flexible dustproof, effectively prevent the cutting waste and dust on the guide rail precisi   on .



f.The manual lubrication system, only a single click, make your machine in good condition.







2.Technical Parameters:







Mold



   TMD-1325



TMD-1613

Working Area

1300x2500x300mm

1600x1300x300mm

Table Size

1470x2980mm

1740x1680mm

Motion Speed

  6-8m/min

   6-8m/min

Operating System

weihong DSP or NC Studio

weihong DSP or NC Studio

Spindle Motor

   4500W

  3000W

Spindle Rotation

6000-24000 rpm/min

6000-24000 rpm/min

Working Voltage

AC220V/50HZ

AC220V/50HZ

  Engraving Tools

3.175/6/12.7mm

3.175/6/12.7mm

Dictate Format

  G-code/HPGL

 G-code/HPGL











3.optional:



a.  Stepper motor / Servo motor.



b.  dust collecting system



c.  vacuum system



d.  Spindle : water cooling spindle (3KW , 4.5KW) / Italy HSD air cooling spindle.


e.  Dsp/NC Studio controlling system



f. can produce any size and color for customers' special requirements.











4.Guarantee and After-sale service:
a.One year warranty. During the one year, if spare part broken , we freely change a new one for you.



b.24hour’s technical support by e-mail or calling.



c.Use English manual for machine using and maintaining.







3KW  3KW water cooling spidle.jpg













Samples:













 Parts:










Our factory:








 Working photos:







5.If you have any needs, please contact us.





Hefei Rite Machinery and Electrical Equipment Co., Ltd.
ADDR: MinYing technology zone, QiYun road, economic development district, HeFei city, China.
TEL: 86-0551-65737189
FAX: 86-0551-65305790
Mobile: 008615156054169
SKYPE: elsacnc
