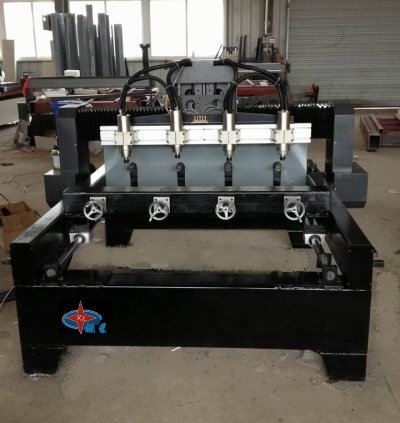

4 axis ROTARY CNC ROUTER machines

4 axis ROTARY CNC ROUTER machines









1.Features:

a.The fuselage uses the industrial pipe welding. It is box structure having large bearing capacity.

b.Adopting fixed Longmen frame structure, high precision dividing head, holding large diameter.

c.The Z assembly key parts using iron tempering processing, ensure no deformation.

d.Adopting unique intelligent prediction algorithm, give full play to drive potential, to achieve linear synchronous, smoother curves.

e.It is equipped with independent control cabinet, convenient maintenance of the machines, industrial grade wiring standard, anti jamming ability.

f.The software compatibility is good, can be compatible with Type3/Artcam/CAXA/UG/Pro-E/Mastercam/ Wentai etc.



2.Technical Parameters:







Mold



   TMY-3010



TMY-1016

Max.length

   1000mm

 1000mm

Max.Diameter

   300mm

 160mm

Motion Speed

  6-8m/min

   6-8m/min

Operating System

weihong DSP or NC Studio

weihong DSP or NC Studio

Spindle Motor

   2.2kW ( 4pcs)

  2.2kw

Spindle Rotation

6000-24000 rpm/min

6000-24000 rpm/min

Working Voltage

AC220V/50HZ

AC220V/50HZ

Engraving Tools

3.175/6/12.7mm

3.175/6/12.7mm

Dictate Format

  G-code/HPGL

 G-code/HPGL






3.optional:



a.  Stepper motor / Servo motor.

b.  dust collecting system

c.  vacuum system

d.  Spindle : water cooling spindle (3KW , 4.5KW) / Italy HSD air cooling spindle.
e.  Dsp/NC Studio controlling system

f.  can produce any size and color for customers' special  requirements.







4.Guarantee and After-sale service:


a. One year warranty. During the one year, if spare part broken , we freely change a new one for you.



b. 24hour’s technical support by e-mail or calling.


c. Use English manual for machine using and maintaining.







5.If you have any needs, please contact us.







Hefei Rite Machinery and Electrical Equipment Co.,Ltd.
TEL: 0551-5737189
FAX: 0551-5305790
CONTACT: Elsa shan
SKYPE: elsacnc









SAMPLES:

.jpg

rotary cnc router.jpg
